Instrument panels (also called dashboards, dash panels, or instrument clusters) designed for backlit use are a staple in modern automotive interiors. Backlighting enhances readability in low-light/night conditions, improves aesthetics (e.g., ambient/glow effects), highlights icons/symbols (speedometer, tachometer, warnings), and supports premium features like deadfronting (hidden until lit) or customizable illumination.

These panels integrate with the overall dash manufacturing process (injection molding, slush/foaming, assembly) but add specialized steps for light transmission, diffusion, and control.

Key Design Approaches for Backlit Instrument Panels

Backlighting can apply to:

• Gauge faces/dials (analog or hybrid clusters): Illuminated needles, markings, or entire face.
• Icons/symbols/telltales (warning lights, PRNDL indicators): Glow when active.

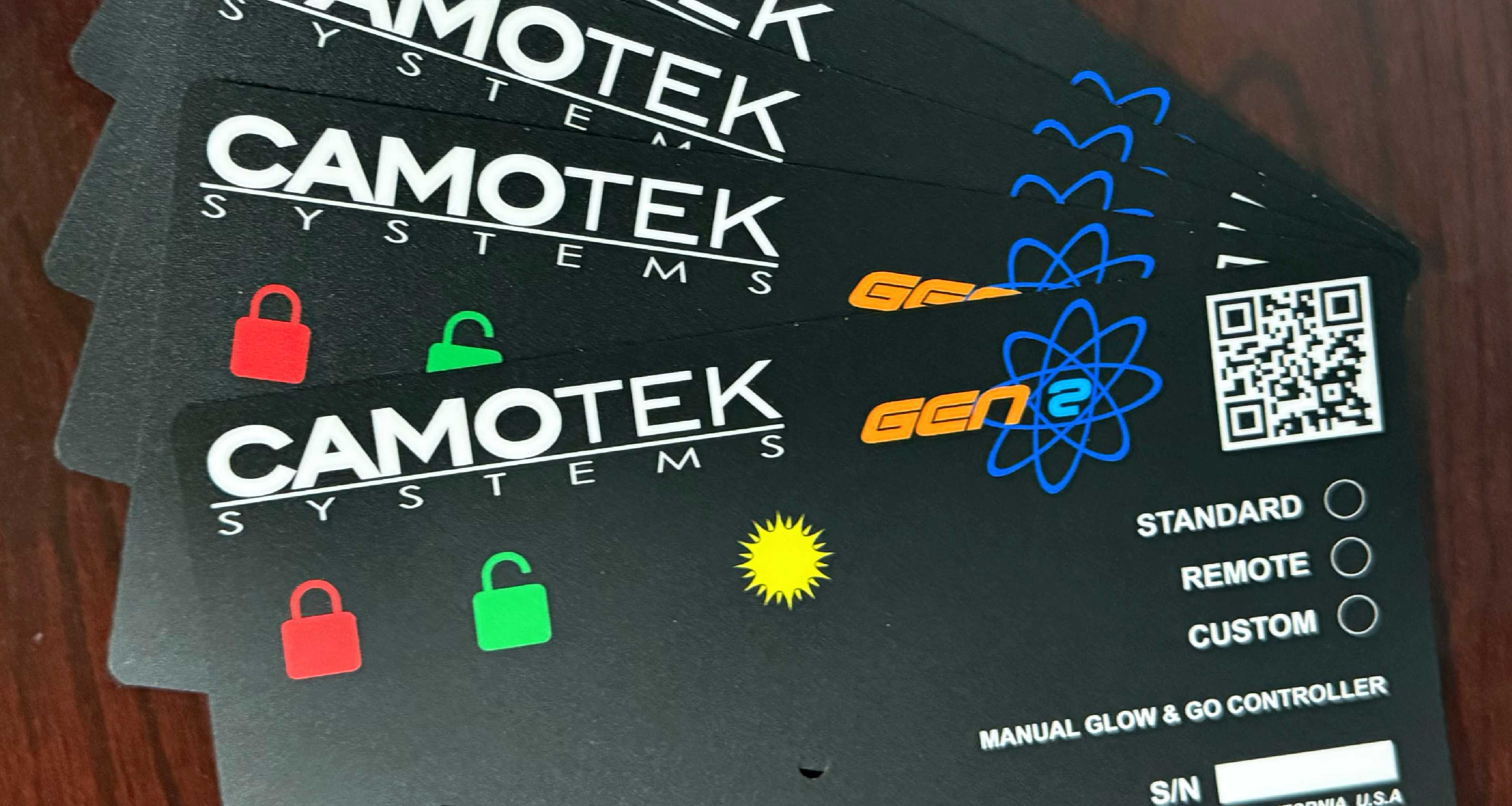

• Overlays/graphic elements: Buttons, vents, or decorative trim with subtle glow.
• Full digital clusters: LCD/TFT screens with integrated LED backlights (common in EVs/modern vehicles).
